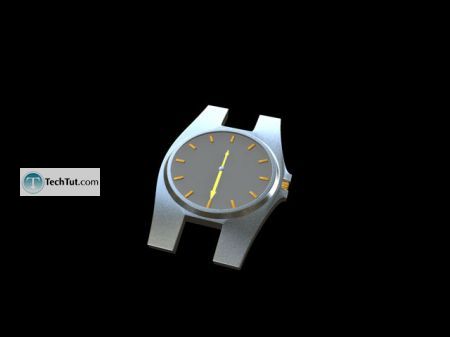

Start creating watch part 1


Tutorial Start creating watch part 1 1


Start with polygon cube
Set division width and Depth 3:

Tutorial Start creating watch part 1 2


Scale it XYZ 5.5, 1, 5.5:

Tutorial Start creating watch part 1 3


Delete this faces:

Tutorial Start creating watch part 1 4


Select side vertices and move it with grid snap (hold x):

Tutorial Start creating watch part 1 5


Extrude faces and move it down a little:

Tutorial Start creating watch part 1 6


Tutorial Start creating watch part 1 7


Move middle vertices to the right:

Tutorial Start creating watch part 1 8


Add edges, use insert edge tool:

Tutorial Start creating watch part 1 9


Tutorial Start creating watch part 1 10


Tutorial Start creating watch part 1 11


Select object, duplicate it and scale with negative X (-5.5):

Tutorial Start creating watch part 1 12


Combine two objects and merge vertices:

Tutorial Start creating watch part 1 13


Tutorial Start creating watch part 1 14


Extrude faces from right side, and scale in Y:

Tutorial Start creating watch part 1 15


Add extra edges:

Tutorial Start creating watch part 1 16
